UV laser marking machine

Materials:

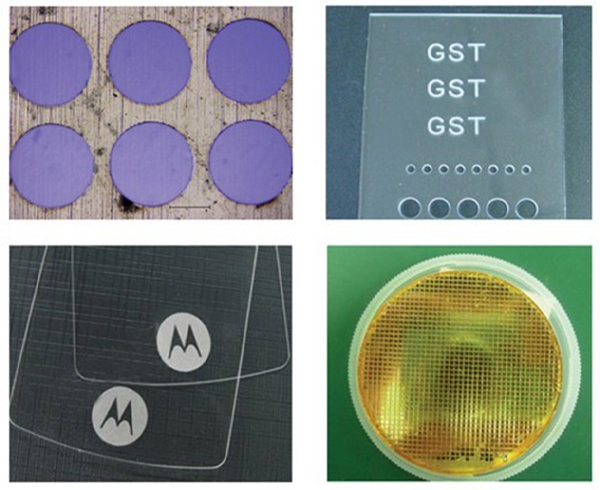

LED, LCD, LCD screen, plasma screen, button, flexible PCB board, medicine, cosmetics, flat panel display production, electronic components, gifts, communication equipment, solar energy, battery materials processing, textile, polymer film, Crystal glass and other materials etc

Product Application: LED, LCD, LCD screen, plasma screen, button, flexible PCB board, medicine, cosmetics, flat panel display production, electronic components, gifts, communication equipment, solar energy, battery materials processing, textile, polymer film, Crystal glass and other materials etc

Features

  1. High light beam quality, small focus spot ,ultra-fine mark, high marking speed ,high efficiency.
  2. Most of materials can absorb ultraviolet light, so a wide range of applications.
  3. The heat affected area is extremely small, which will not produce thermal effects and material scorching.
  4. High-performance UV laser generator, high-precision scanning shock lens, high precision, long life.
  5. Stable machine performance, small size, low power consumption.
  6. Precision linear motor working table, high precision, high speed.
  7. High precision CCD positioning, automatic positioning, automatic calibration.

Parameters

Parameter model JH-UV03 JH-UV05 JH-UV10
Laser power 3W 5W 10W
Laser wavelength 355nm
Writing range 50*50mm-—160*160mm
Marking speed ≤8000mm/s
Beam quality <1.5
Q modulation frequency 8KHz-80KHz
Minimum line width 0.01mm
Minimum character 0.1mm
Repeat accuracy ±0.03mm
Overall power 2kw
Power demand 220V single phase/50Hz/10A
